Plumboss Double Seal Test Plug 4in (100mm) Stable sealing for uneven pipe surfaces The Plumboss Double Seal Test Plug is designed for pipeline testing where uneven pipe surfaces or longer duration sealing requires extra stability. The double seal design helps centralise the plug within the pipe, creating a secure and consistent seal during testing and maintenance operations. Double seal test plugs are commonly used where pipe bores are irregular or where a more stable seal is required for extended testing periods. The dual sealing system improves stability and helps the plug resist movement under pressure, making it suitable for demanding pipeline test environments. For uneven wall surfaces, ensures squarer seal. 4in - 15in PRODUCT CODE DESCRIPTION MIN/MAX - (mm) BSP OUTLET SIZE 4DS TEST PLUG DOUBLE SEAL 4in (100mm) 94 - 110 ½in 6DS TEST PLUG DOUBLE SEAL 6in (150mm) 146 - 163 ½in 8DS TEST PLUG DOUBLE SEAL 8in (200mm) 191 - 211 1in 9DS TEST PLUG DOUBLE SEAL 9in (225mm) 216 - 235 1in 10DS TEST PLUG DOUBLE SEAL 10in (250mm) 244 - 260 1in 12DS TEST PLUG DOUBLE SEAL 12in (300mm) 296 - 314 1in 15DS TEST PLUG DOUBLE SEAL 15in (375mm) 365 - 400 1in Operating Pressure Sizes  This is a guide to the maximum back pressure for the different types and sizes of test plugs.   These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.  ½” (12.5mm) to (30mm)  30 psi  1½” (40mm) to (300mm)  7 psi  13” (325mm) to (1200mm)  5 psi  Over 40” (1200mm)  3 psi

Read more less

Plumboss Double Seal Test Plug 6in (150mm) Stable sealing for uneven pipe surfaces The Plumboss Double Seal Test Plug is designed for pipeline testing where uneven pipe surfaces or longer duration sealing requires extra stability. The double seal design helps centralise the plug within the pipe, creating a secure and consistent seal during testing and maintenance operations. Double seal test plugs are commonly used where pipe bores are irregular or where a more stable seal is required for extended testing periods. The dual sealing system improves stability and helps the plug resist movement under pressure, making it suitable for demanding pipeline test environments. For uneven wall surfaces, ensures squarer seal. 4in - 15in PRODUCT CODE DESCRIPTION MIN/MAX - (mm) BSP OUTLET SIZE 4DS TEST PLUG DOUBLE SEAL 4in (100mm) 94 - 110 ½in 6DS TEST PLUG DOUBLE SEAL 6in (150mm) 146 - 163 ½in 8DS TEST PLUG DOUBLE SEAL 8in (200mm) 191 - 211 1in 9DS TEST PLUG DOUBLE SEAL 9in (225mm) 216 - 235 1in 10DS TEST PLUG DOUBLE SEAL 10in (250mm) 244 - 260 1in 12DS TEST PLUG DOUBLE SEAL 12in (300mm) 296 - 314 1in 15DS TEST PLUG DOUBLE SEAL 15in (375mm) 365 - 400 1in Operating Pressure Sizes  This is a guide to the maximum back pressure for the different types and sizes of test plugs.   These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.  ½” (12.5mm) to (30mm)  30 psi  1½” (40mm) to (300mm)  7 psi  13” (325mm) to (1200mm)  5 psi  Over 40” (1200mm)  3 psi

Read more less

Plumboss Double Seal Test Plug 8in (200mm) Stable sealing for uneven pipe surfaces The Plumboss Double Seal Test Plug is designed for pipeline testing where uneven pipe surfaces or longer duration sealing requires extra stability. The double seal design helps centralise the plug within the pipe, creating a secure and consistent seal during testing and maintenance operations. Double seal test plugs are commonly used where pipe bores are irregular or where a more stable seal is required for extended testing periods. The dual sealing system improves stability and helps the plug resist movement under pressure, making it suitable for demanding pipeline test environments. For uneven wall surfaces, ensures squarer seal. 4in - 15in PRODUCT CODE DESCRIPTION MIN/MAX - (mm) BSP OUTLET SIZE 4DS TEST PLUG DOUBLE SEAL 4in (100mm) 94 - 110 ½in 6DS TEST PLUG DOUBLE SEAL 6in (150mm) 146 - 163 ½in 8DS TEST PLUG DOUBLE SEAL 8in (200mm) 191 - 211 1in 9DS TEST PLUG DOUBLE SEAL 9in (225mm) 216 - 235 1in 10DS TEST PLUG DOUBLE SEAL 10in (250mm) 244 - 260 1in 12DS TEST PLUG DOUBLE SEAL 12in (300mm) 296 - 314 1in 15DS TEST PLUG DOUBLE SEAL 15in (375mm) 365 - 400 1in Operating Pressure Sizes  This is a guide to the maximum back pressure for the different types and sizes of test plugs.   These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.  ½” (12.5mm) to (30mm)  30 psi  1½” (40mm) to (300mm)  7 psi  13” (325mm) to (1200mm)  5 psi  Over 40” (1200mm)  3 psi

Read more less

Plumboss Double Seal Test Plug 9in (225mm) Stable sealing for uneven pipe surfaces The Plumboss Double Seal Test Plug is designed for pipeline testing where uneven pipe surfaces or longer duration sealing requires extra stability. The double seal design helps centralise the plug within the pipe, creating a secure and consistent seal during testing and maintenance operations. Double seal test plugs are commonly used where pipe bores are irregular or where a more stable seal is required for extended testing periods. The dual sealing system improves stability and helps the plug resist movement under pressure, making it suitable for demanding pipeline test environments. For uneven wall surfaces, ensures squarer seal. 4in - 15in PRODUCT CODE DESCRIPTION MIN/MAX - (mm) BSP OUTLET SIZE 4DS TEST PLUG DOUBLE SEAL 4in (100mm) 94 - 110 ½in 6DS TEST PLUG DOUBLE SEAL 6in (150mm) 146 - 163 ½in 8DS TEST PLUG DOUBLE SEAL 8in (200mm) 191 - 211 1in 9DS TEST PLUG DOUBLE SEAL 9in (225mm) 216 - 235 1in 10DS TEST PLUG DOUBLE SEAL 10in (250mm) 244 - 260 1in 12DS TEST PLUG DOUBLE SEAL 12in (300mm) 296 - 314 1in 15DS TEST PLUG DOUBLE SEAL 15in (375mm) 365 - 400 1in Operating Pressure Sizes  This is a guide to the maximum back pressure for the different types and sizes of test plugs.   These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.  ½” (12.5mm) to (30mm)  30 psi  1½” (40mm) to (300mm)  7 psi  13” (325mm) to (1200mm)  5 psi  Over 40” (1200mm)  3 psi

Read more less

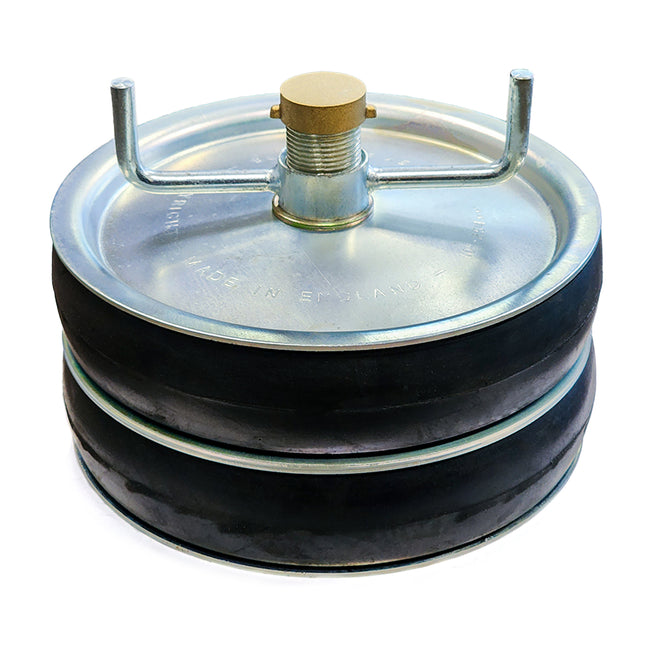

Plumboss Double Seal Test Plug 10in (250mm)  Stable sealing for uneven pipe surfaces The Plumboss Double Seal Test Plug is designed for pipeline testing where uneven pipe surfaces or longer duration sealing requires extra stability. The double seal design helps centralise the plug within the pipe, creating a secure and consistent seal during testing and maintenance operations. Double seal test plugs are commonly used where pipe bores are irregular or where a more stable seal is required for extended testing periods. The dual sealing system improves stability and helps the plug resist movement under pressure, making it suitable for demanding pipeline test environments. For uneven wall surfaces, ensures squarer seal. 4in - 15in PRODUCT CODE DESCRIPTION MIN/MAX - (mm) BSP OUTLET SIZE 4DS TEST PLUG DOUBLE SEAL 4in (100mm) 94 - 110 ½in 6DS TEST PLUG DOUBLE SEAL 6in (150mm) 146 - 163 ½in 8DS TEST PLUG DOUBLE SEAL 8in (200mm) 191 - 211 1in 9DS TEST PLUG DOUBLE SEAL 9in (225mm) 216 - 235 1in 10DS TEST PLUG DOUBLE SEAL 10in (250mm) 244 - 260 1in 12DS TEST PLUG DOUBLE SEAL 12in (300mm) 296 - 314 1in 15DS TEST PLUG DOUBLE SEAL 15in (375mm) 365 - 400 1in Operating Pressure Sizes  This is a guide to the maximum back pressure for the different types and sizes of test plugs.   These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.  ½” (12.5mm) to (30mm)  30 psi  1½” (40mm) to (300mm)  7 psi  13” (325mm) to (1200mm)  5 psi  Over 40” (1200mm)  3 psi

Read more less

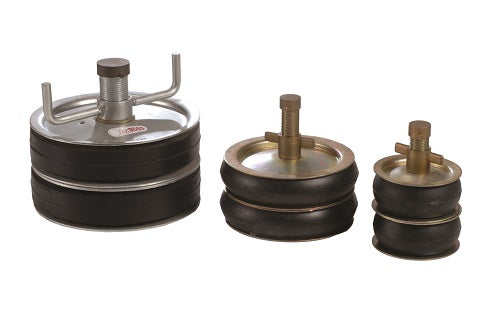

Plumboss Double Seal Test Plug 12in (300mm) Stable sealing for uneven pipe surfaces The Plumboss Double Seal Test Plug is designed for pipeline testing where uneven pipe surfaces or longer duration sealing requires extra stability. The double seal design helps centralise the plug within the pipe, creating a secure and consistent seal during testing and maintenance operations. Double seal test plugs are commonly used where pipe bores are irregular or where a more stable seal is required for extended testing periods. The dual sealing system improves stability and helps the plug resist movement under pressure, making it suitable for demanding pipeline test environments. For uneven wall surfaces, ensures squarer seal. 4in - 15in PRODUCT CODE DESCRIPTION MIN/MAX - (mm) BSP OUTLET SIZE 4DS TEST PLUG DOUBLE SEAL 4in (100mm) 94 - 110 ½in 6DS TEST PLUG DOUBLE SEAL 6in (150mm) 146 - 163 ½in 8DS TEST PLUG DOUBLE SEAL 8in (200mm) 191 - 211 1in 9DS TEST PLUG DOUBLE SEAL 9in (225mm) 216 - 235 1in 10DS TEST PLUG DOUBLE SEAL 10in (250mm) 244 - 260 1in 12DS TEST PLUG DOUBLE SEAL 12in (300mm) 296 - 314 1in 15DS TEST PLUG DOUBLE SEAL 15in (375mm) 365 - 400 1in Operating Pressure Sizes  This is a guide to the maximum back pressure for the different types and sizes of test plugs.   These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.  ½” (12.5mm) to (30mm)  30 psi  1½” (40mm) to (300mm)  7 psi  13” (325mm) to (1200mm)  5 psi  Over 40” (1200mm)  3 psi

Read more less

Plumboss Double Seal Test Plug 15in (375mm) Stable sealing for uneven pipe surfaces The Plumboss Double Seal Test Plug is designed for pipeline testing where uneven pipe surfaces or longer duration sealing requires extra stability. The double seal design helps centralise the plug within the pipe, creating a secure and consistent seal during testing and maintenance operations. Double seal test plugs are commonly used where pipe bores are irregular or where a more stable seal is required for extended testing periods. The dual sealing system improves stability and helps the plug resist movement under pressure, making it suitable for demanding pipeline test environments. For uneven wall surfaces, ensures squarer seal. 4in - 15in PRODUCT CODE DESCRIPTION MIN/MAX - (mm) BSP OUTLET SIZE 4DS TEST PLUG DOUBLE SEAL 4in (100mm) 94 - 110 ½in 6DS TEST PLUG DOUBLE SEAL 6in (150mm) 146 - 163 ½in 8DS TEST PLUG DOUBLE SEAL 8in (200mm) 191 - 211 1in 9DS TEST PLUG DOUBLE SEAL 9in (225mm) 216 - 235 1in 10DS TEST PLUG DOUBLE SEAL 10in (250mm) 244 - 260 1in 12DS TEST PLUG DOUBLE SEAL 12in (300mm) 296 - 314 1in 15DS TEST PLUG DOUBLE SEAL 15in (375mm) 365 - 400 1in Operating Pressure Sizes  This is a guide to the maximum back pressure for the different types and sizes of test plugs.   These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.  ½” (12.5mm) to (30mm)  30 psi  1½” (40mm) to (300mm)  7 psi  13” (325mm) to (1200mm)  5 psi  Over 40” (1200mm)  3 psi

Read more less
