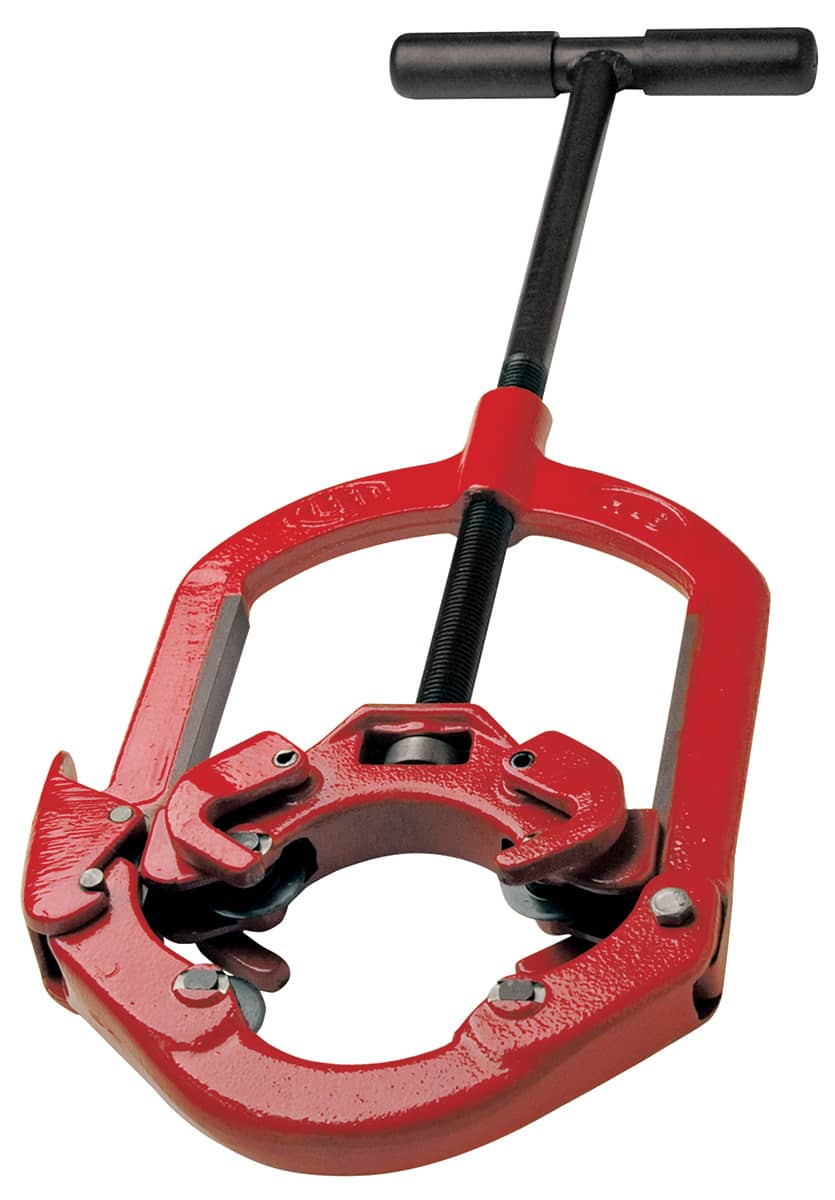

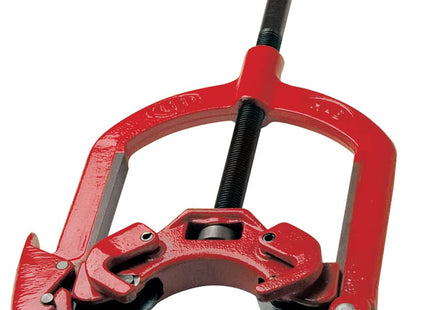

Hinged Cutter 4–6 inch for Cast and Ductile Iron - H6I | RD03132

Hinged Cutter 4–6 inch for Cast and Ductile Iron - H6I | RD03132

Product form

SKU: RD03132

or call us on:
P: 09 215 7277

  Find a Retailer

300+ Distributors New Zealand wide! Call us on 09 215 7277 to find your nearest retailer.

Key Features
  • Pipe cutter with hinge requires only 4 inch (102 mm) clearance around pipe
  • Efficient handle swing of 90 to 110 degrees
  • Hinged design opens to place cutter around pipe
  • Can be used in a ditch, underwater, overhead and in racks of pipe
  • Cutter wheels installed for cast iron and ductile iron pipe
Downloads:
Download Hinged Cutter 4–6 inch for Cast and Ductile Iron - H6I | RD03132 User Manual

Description

Hinged pipe cutter for cast and ductile iron

The hinged design allows the cutter to wrap around the pipe, making it suitable for use in confined spaces where full rotation is not possible.

Designed for controlled cutting, the cutter applies even pressure around the pipe circumference to achieve a clean cut. The hinged construction allows quick installation onto the pipe and efficient operation in trench or in-place applications.

Hinged cutters in this range:

 Pipe Capacity Cast Iron /        Ductile Iron Copper Steel /              Stainless Steel Heavy Wall / Stainless Steel
1" – 2 1/2"              (32 – 76 mm) - - RD03110 -
2" – 4"                    (60 – 125 mm) RD03122 - RD03120 -
4" – 6"                    (114 – 182 mm) RD03132 RD03130 RD03130 -
6" – 8"                    (168 – 240 mm) RD03142 RD03140 RD03140 -
8" – 12"                  (219 – 356 mm) RD03152 - RD03150 RD03154

Specifications

  • Pipe Capacity: 114 – 182 mm
  • Nominal Capacity: 4 – 6 inch
  • Application: Cast iron
  • ductile iron pipe: ductile iron pipe
  • Cutter Wheel: HI6
  • Length: 28" (711 mm)
  • Weight: 8.6 kg
  • Type: Hinged pipe cutter for Cast
  • Ductile Iron: Ductile Iron
  • Read more
