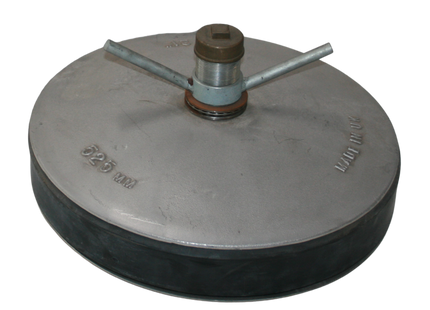

Plumboss Aluminium Test Plug 21 in (525mm) | 21AL
Plumboss Aluminium Test Plug 21 in (525mm) | 21AL
SKU: 21AL
or call us on:
P: 09 215 7277
Find a Retailer
300+ Distributors New Zealand wide! Call us on 09 215 7277 to find your nearest retailer.
Description

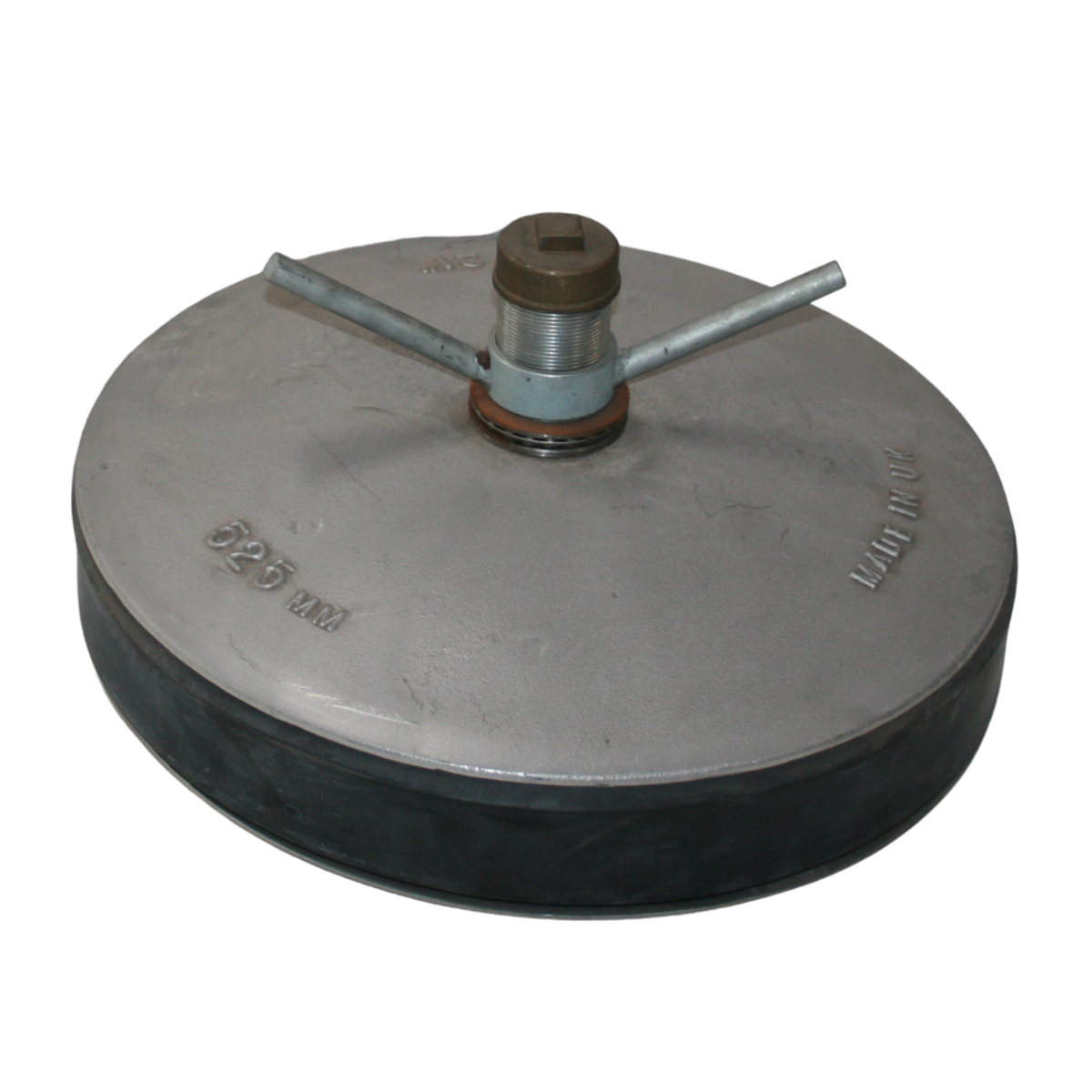

Plumboss Aluminium Test Plug 21 in (525mm)
Heavy duty aluminium plug for large diameter pipe testing
The Plumboss Aluminium Test Plug is designed for sealing large diameter pipelines during pressure testing, maintenance and commissioning. Built for reliability in demanding environments, it delivers a secure mechanical seal for drainage, sewer and civil applications.
Manufactured with a durable aluminium body and centre locking mechanism, this plug expands to create a tight seal inside the pipe. A steel wing nut and brass cap allow controlled tightening and connection for testing. Aluminium test plugs are ideal for leak testing, isolation, sealing, stopping and purging pipework where a strong, corrosion resistant solution is required.
For sealing when testing pipe lines from 1 1/2in up to 48in
| PRODUCT CODE | DESCRIPTION | MIN/MAX (mm) | BSP OUTLET SIZE |
|---|---|---|---|
| 1½AL | TEST PLUG ALUMINIUM 1 ½in (38mm) | 36 - 48 | ½in |
| 2AL | TEST PLUG ALUMINIUM 2in (50mm) | 49 - 60 | ½in |
| 2½AL | TEST PLUG ALUMINIUM 2 ½in (65mm) | 61 - 75 | ½in |
| 3AL | TEST PLUG ALUMINIUM 3in (75mm) | 73 - 85 | ½in |
| 4AL | TEST PLUG ALUMINIUM 4in (100mm) | 94 - 110 | ½in |
| 6AL | TEST PLUG ALUMINIUM 6in (150mm) | 146 - 163 | ½in |
| 21AL | TEST PLUG ALUMINIUM 21in (525mm) | 520 - 555 | 2in |
| 24AL | TEST PLUG ALUMINIUM 24in (600mm) | 590 - 630 | 2in |
|
Operating Pressure Sizes
|
|
|
This is a guide to the maximum back pressure for the different types and sizes of test plugs.
These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.
|
|
|
½” (12.5mm) to (30mm) |
30 psi |
|
1½” (40mm) to (300mm) |
7 psi |
|
13” (325mm) to (1200mm) |
5 psi |
|
Over 40” (1200mm) |
3 psi |
Specifications
- Pipe Size Range: 520–555 mm
- Outlet Size: 2 inch BSP
- Construction: Aluminium body with rubber sealing ring
