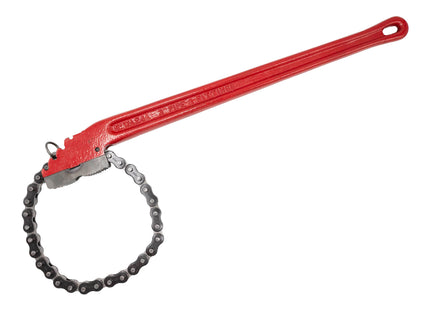

Chain Wrench - WA48 (33-168mm) | RD02080
Chain Wrench - WA48 (33-168mm) | RD02080
SKU: RD02080
or call us on:
P: 09 215 7277
Find a Retailer
300+ Distributors New Zealand wide! Call us on 09 215 7277 to find your nearest retailer.
Description

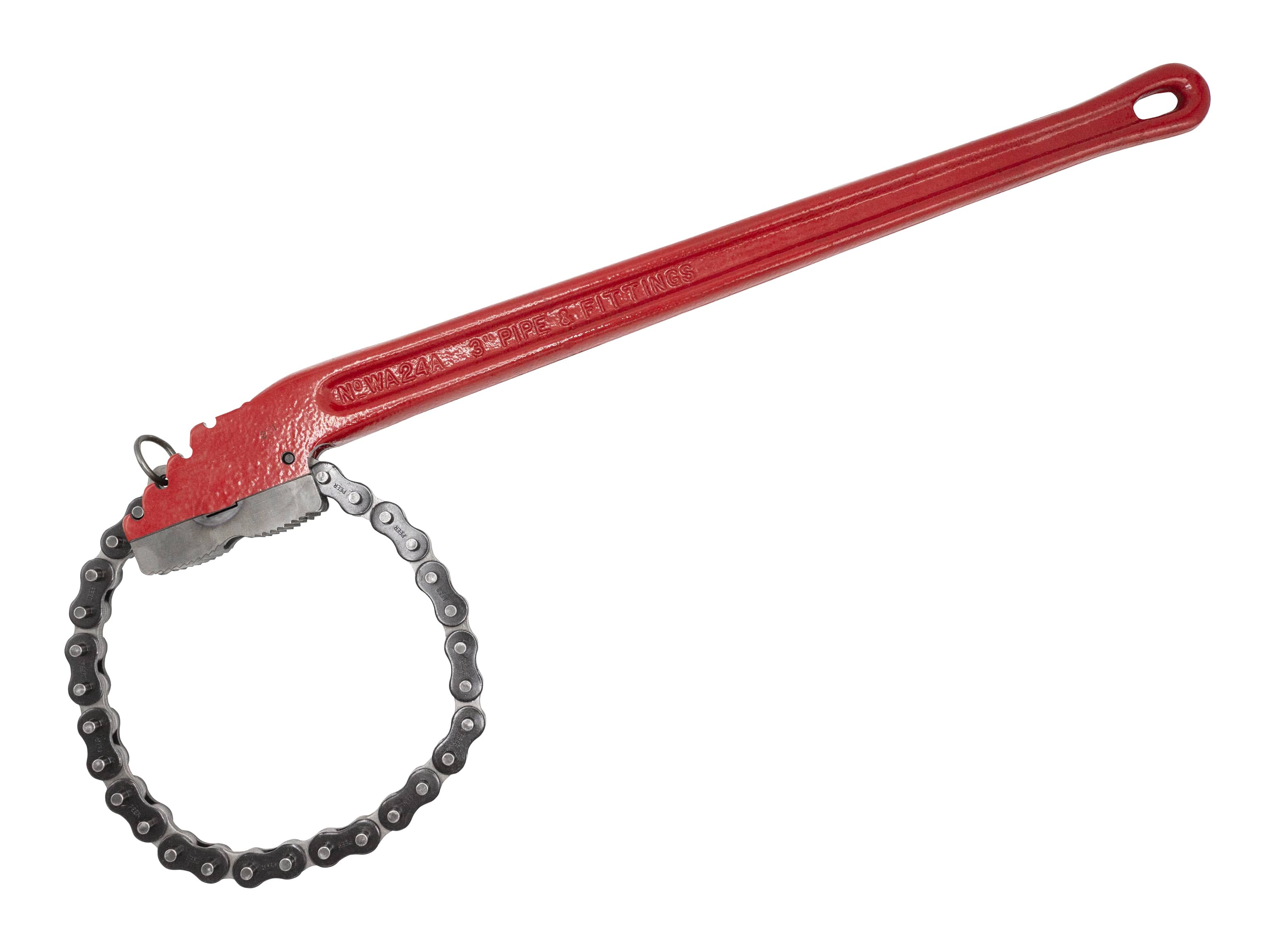

Heavy duty chain wrench for high torque pipe work
The Plumboss Heavy Duty Chain Wrench is designed for gripping and turning pipe, fittings and irregular shapes in confined spaces. The wrap-around chain design provides a strong, slip-resistant hold, making it ideal for plumbing, waterworks and general pipe fitting applications.
Built for demanding trade use, this wrench delivers safe, reliable and powerful torque across a wide range of pipe sizes. Dual, reversible jaws allow ratchet action in both directions without removing the wrench from the pipe, improving efficiency and control on site. The in-line handle and jaw design also allows the tool to rest on the pipe during setup for easier operation.
Chain pipe wrenches in this range:
| Item Code | Description | Weight kg | Length | Max O.D. | Pipe Capacity | |
| Nominal | Actual | |||||
| RD02060 | Chain Wrench 14-90mm |
3.8 | 24" (610mm) |
5.8" (147mm) |
1/4" – 3" | 14 – 90mm |
| RD02070 | Chain Wrench 21-127mm |
8.2 | 33" (838mm) |
7.1" (180mm) |
1/2" – 4 1/2" | 21 – 127mm |
| RD02080 | Chain Wrench 33-168mm |
13.4 | 44" (1118mm) |
8.5" (216mm) |
1 – 6 | 33 – 168mm |
Specifications
- Pipe Capacity: 33–168 mm
- Nominal Capacity: 1" – 6"
- Overall Length: 1118 mm (44")
- Maximum O.D.: 216 mm
- Chain Tensile Strength: 20,500 lbs
- Weight: 13.4 kg
