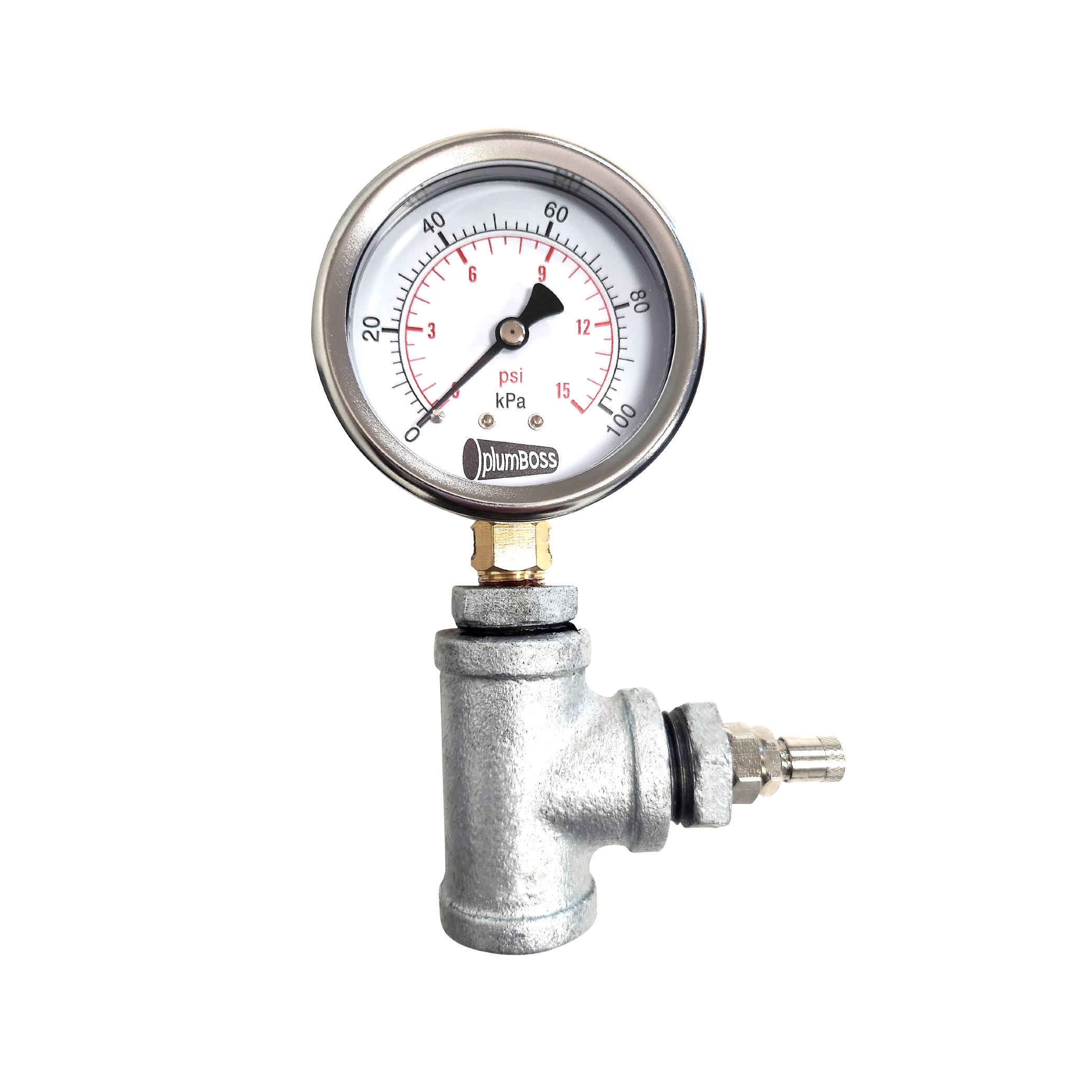

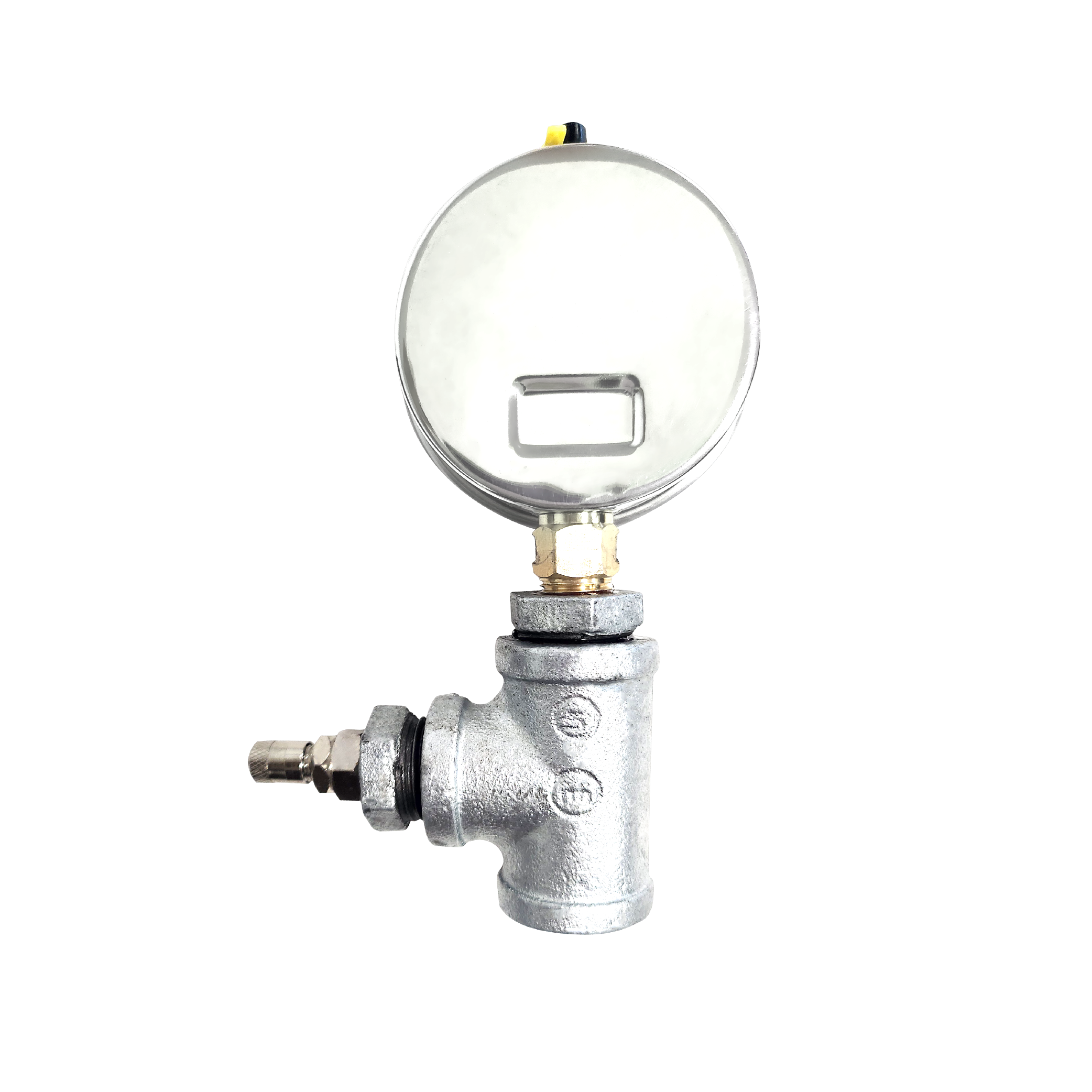

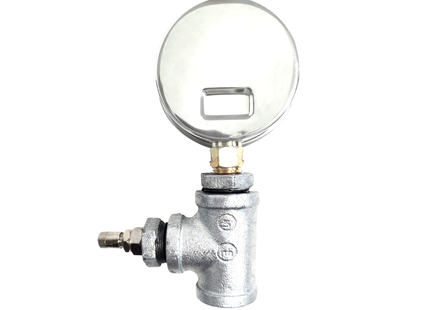

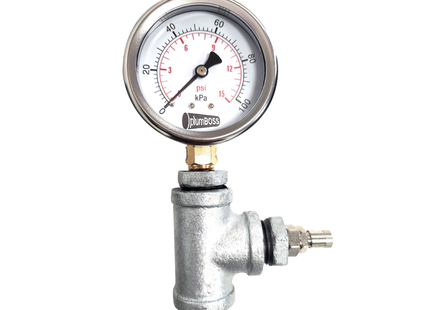

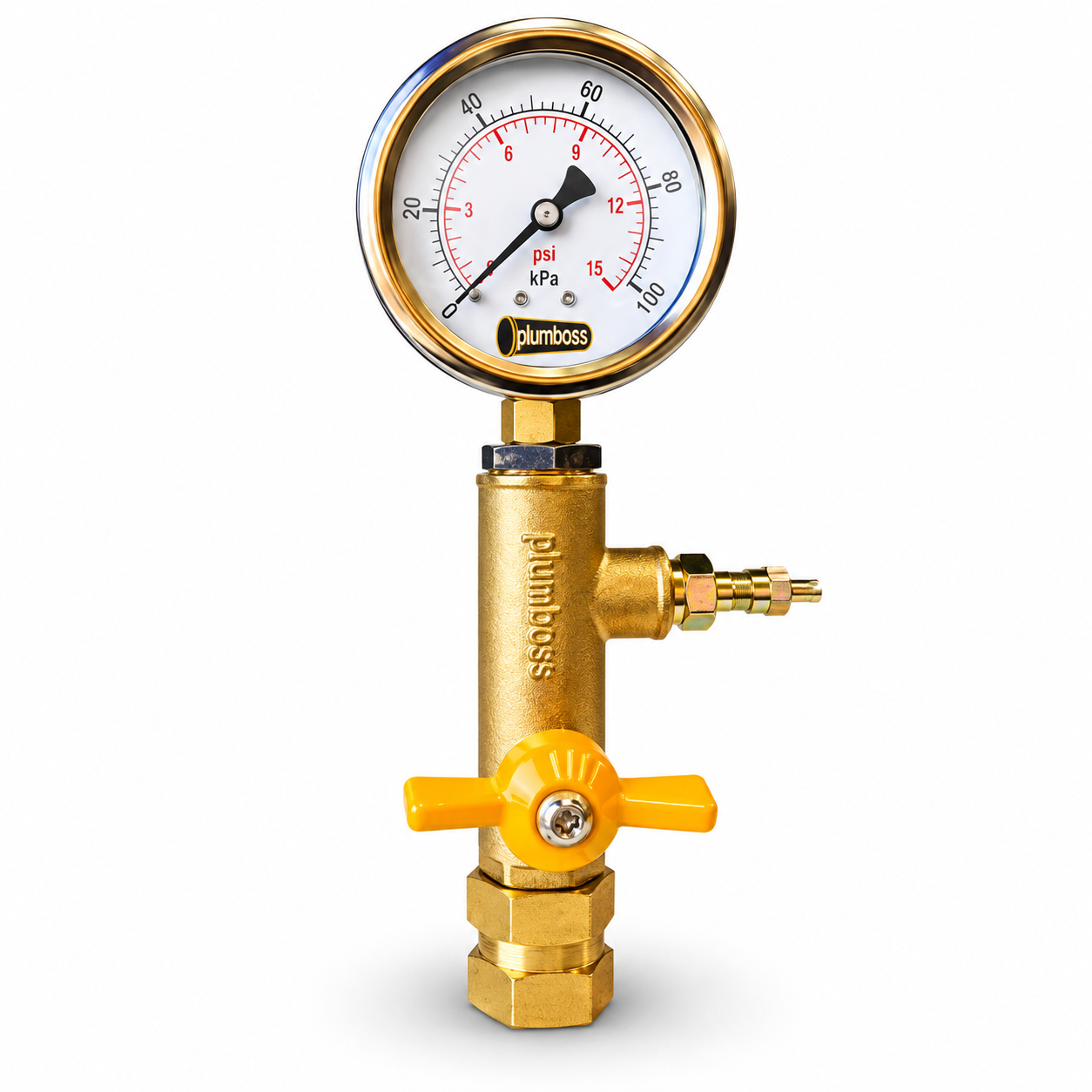

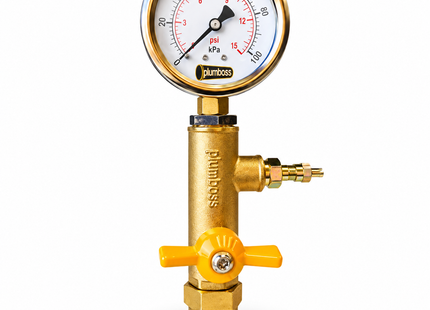

Schrader Air Test Gauge 0–100kPa
Simple air pressure testing for drainage and plumbing stacks
The Plumboss ATK03 is a compact air test assembly designed for pressure testing sealed sanitary pipework, drainage systems and plumbing stacks.
The 1/2" BSP female connection allows the unit to be fitted directly to a compatible test plug or threaded test point. Pipework can then be pressurised through the integrated Schrader valve, while the 0–100 kPa pressure gauge provides a clear indication of system pressure.
An integrated ball valve provides convenient isolation at the test point, making the ATK03 particularly useful when testing individual sections of pipework on multi-unit and commercial installations.
Features & Benefits
- 0–100 kPa pressure gauge
- Integrated Schrader inflation valve
- 1/2" BSP female connection
- Integrated isolation ball valve
- Brass body construction
- Compact, direct-to-test-point design
- Suitable for low-pressure air testing of drainage and sanitary pipework
Connection: 1/2" BSP female
Gauge Range: 0–100 kPa / 0–15 psi
Test Medium: Air
