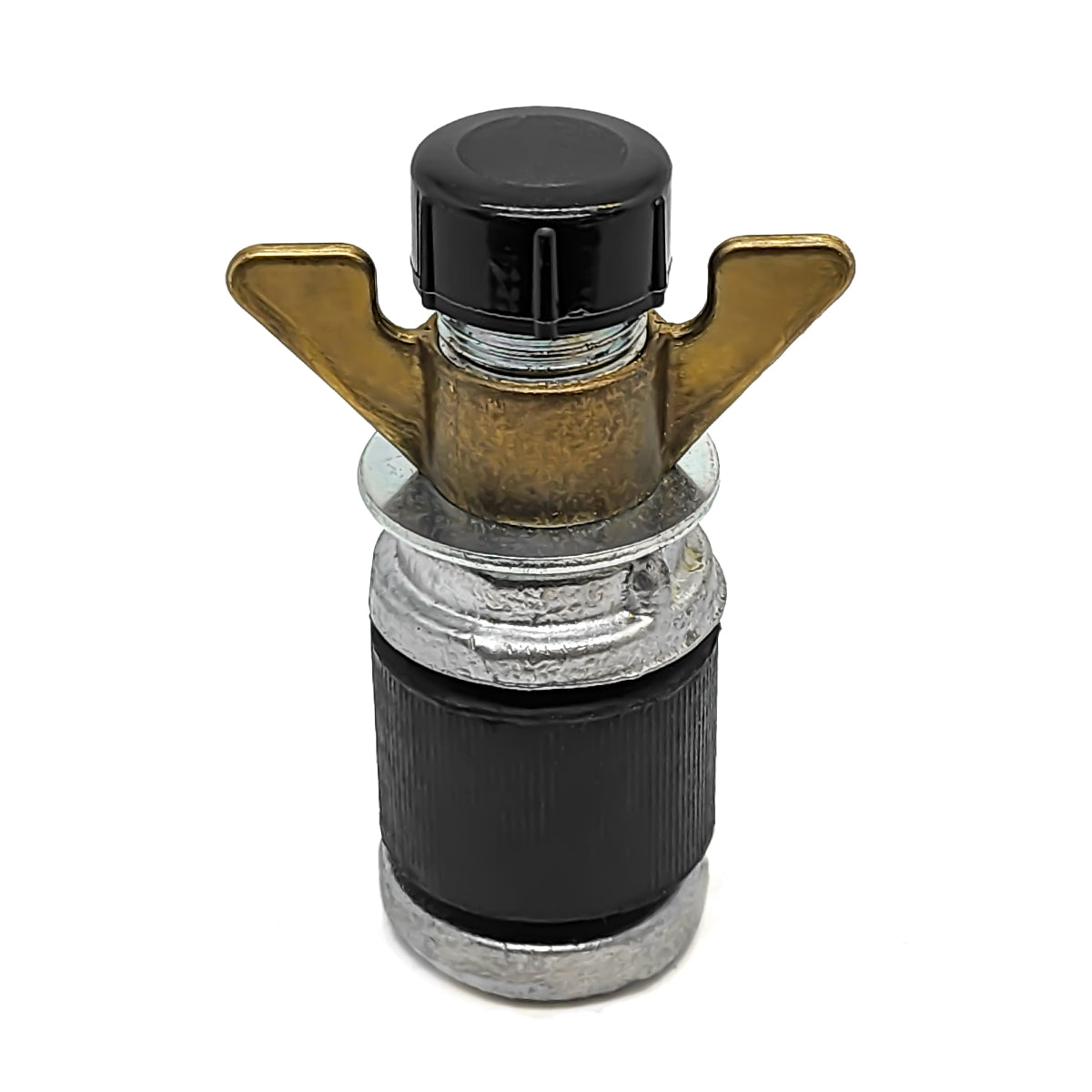

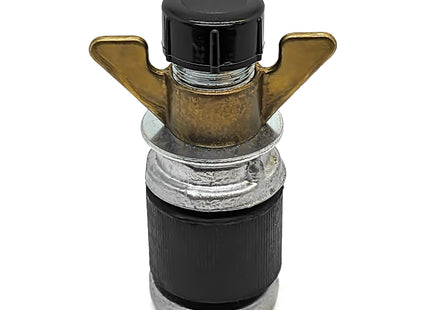

Plumboss Test Plug Aluminium 1 1/2 inch (38mm) | 1.5AL

Description

For sealing when testing pipe lines from 1 1/2in up to 48in

PRODUCT CODE	DESCRIPTION	MIN/MAX (mm)	BSP OUTLET SIZE
1½AL	TEST PLUG ALUMINIUM 1 ½in (38mm)	36 - 48	½in
2AL	TEST PLUG ALUMINIUM 2in (50mm)	49 - 60	½in
2½AL	TEST PLUG ALUMINIUM 2 ½in (65mm)	61 - 75	½in
3AL	TEST PLUG ALUMINIUM 3in (75mm)	73 - 85	½in
4AL	TEST PLUG ALUMINIUM 4in (100mm)	94 - 110	½in
6AL	TEST PLUG ALUMINIUM 6in (150mm)	146 - 163	½in
21AL	TEST PLUG ALUMINIUM 21in (525mm)	520 - 555	2in
24AL	TEST PLUG ALUMINIUM 24in (600mm)	590 - 630	2in

Operating Pressure Sizes
This is a guide to the maximum back pressure for the different types and sizes of test plugs. These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.
½” (12.5mm) to (30mm)	30 psi
1½” (40mm) to (300mm)	7 psi
13” (325mm) to (1200mm)	5 psi
Over 40” (1200mm)	3 psi

Product form

SKU: 1.5AL

or call us on:
P: 09 215 7277

Find a Retailer

300+ Distributors New Zealand wide! Call us on 09 215 7277 to find your nearest retailer.

For sealing when testing pipe lines from 1 1/2in up to 48in

PRODUCT CODE	DESCRIPTION	MIN/MAX (mm)	BSP OUTLET SIZE
1½AL	TEST PLUG ALUMINIUM 1 ½in (38mm)	36 - 48	½in
2AL	TEST PLUG ALUMINIUM 2in (50mm)	49 - 60	½in
2½AL	TEST PLUG ALUMINIUM 2 ½in (65mm)	61 - 75	½in
3AL	TEST PLUG ALUMINIUM 3in (75mm)	73 - 85	½in
4AL	TEST PLUG ALUMINIUM 4in (100mm)	94 - 110	½in
6AL	TEST PLUG ALUMINIUM 6in (150mm)	146 - 163	½in
21AL	TEST PLUG ALUMINIUM 21in (525mm)	520 - 555	2in
24AL	TEST PLUG ALUMINIUM 24in (600mm)	590 - 630	2in

Operating Pressure Sizes
This is a guide to the maximum back pressure for the different types and sizes of test plugs. These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.
½” (12.5mm) to (30mm)	30 psi
1½” (40mm) to (300mm)	7 psi
13” (325mm) to (1200mm)	5 psi
Over 40” (1200mm)	3 psi
