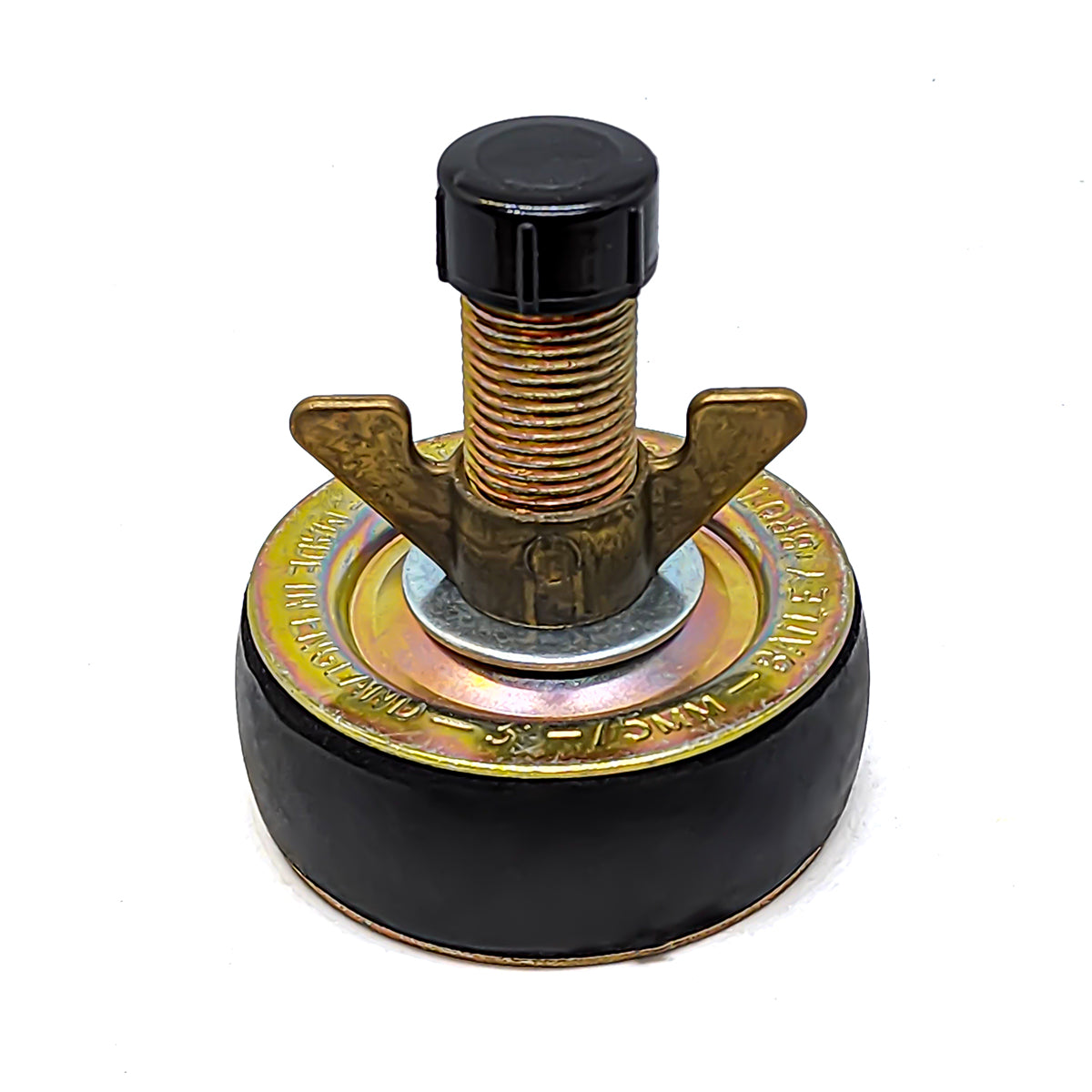

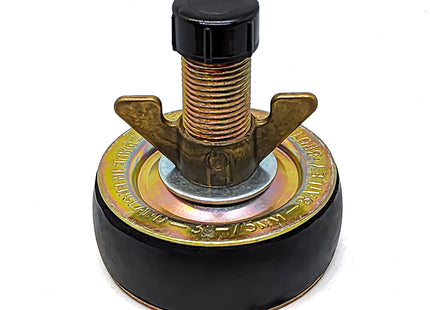

Plumboss Pressed Steel Test Plug 3in (75mm)
Heavy-duty sealing for pipe testing
The Plumboss Pressed Steel Test Plug is designed for sealing pipelines during pressure testing, pipe stopping and purging applications. Manufactured from durable pressed steel, these plugs provide a strong and reliable mechanical seal inside the pipe.
Pressed steel test plugs are ideal for higher-pressure applications where a stronger and more durable solution is required. Commonly used as pipe stops, for pressure testing and pipe purging, they provide a dependable temporary seal in plumbing, civil, drainage and industrial pipeline systems.
| Product Code | Description | Min/Max - (mm) | BSP Outlet Size |
| 1 1/2PS | TEST PLUG PRESSED STEEL 1 1/2in (38mm) | 36-48 | 1½in |
| 2PS | TEST PLUG PRESSED STEEL 2in (50mm) | 49-60 | ½in |
| 2 1/2ps | TEST PLUG PRESSED STEEL 2 1/2in (65mm) | 61-75 | ½in |
| 3PS | TEST PLUG PRESSED STEEL 3in (75mm) | 73-85 | ½in |
| 4PS | TEST PLUG PRESSED STEEL 4in (100mm) | 94-110 | ½in |
| 5PS | TEST PLUG PRESSED STEEL 5in (125mm) | 121-138 | ½in |
| 6PS | TEST PLUG PRESSED STEEL 6in (150mm) | 146-163 | ½in |
| 7PS | TEST PLUG PRESSED STEEL 7in (175mm) | 170 - 195 | 1in |
| 8PS | TEST PLUG PRESSED STEEL 8in (200mm) | 191-211 | 1in |
| 9PS | TEST PLUG PRESSED STEEL 9in (225mm) | 216-235 | 1in |
| 10PS | TEST PLUG PRESSED STEEL 10in (250mm) | 244-260 | 1in |
| 12PS | TEST PLUG PRESSED STEEL 12in (300mm) | 296-314 | 1in |
| 15PS | TEST PLUG PRESSED STEEL 15in (375mm) | 365-400 | 1in |
| 18PS | TEST PLUG PRESSED STEEL 18in (450mm) | 440-475 | 1in |
|
Operating Pressure Sizes
|
|
|
This is a guide to the maximum back pressure for the different types and sizes of test plugs.
These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.
|
|
|
½” (12.5mm) to (30mm) |
30 psi |
|
1½” (40mm) to (300mm) |
7 psi |
|
13” (325mm) to (1200mm) |
5 psi |
|
Over 40” (1200mm) |
3 psi |
Specifications
- Pipe Size Range: 73–85 mm
- Outlet Size: ½ inch BSP
- Construction: Pressed steel body with sealing gasket
